For building in the apparatus
THERMAL PRINTER UNIT DR-SERIES
HIGH SPEED AND HIGH RESOLUTION RECORDING OF
ANALOG AND DIGITAL INFORMATION
GRAPHICAL PRINTING IS POSSIBLE BY BIT IMAGE
SIGNAL

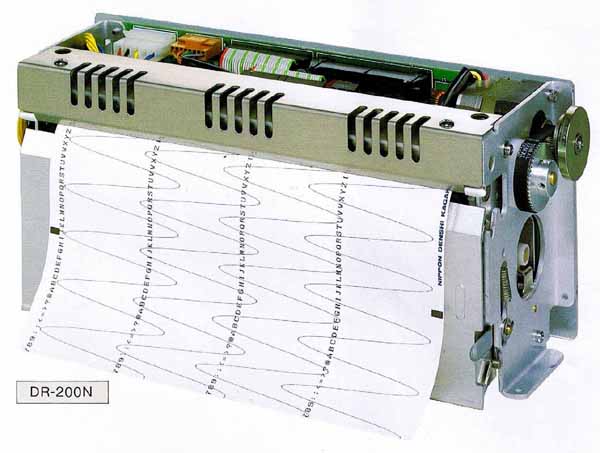

DR-200N DR-100N DR-50N
THERMAL PRINTER UNIT
OUTLINE
Thermal printer units of DR-series are available
for three different paper sizes, 210mm, 114mm
and 58mm wide. All the units are the naked type
for being built in the apparatus.
Liner type thin-film thermal head is applied for
DR-series. So, smooth analog wave printing,
high-speed/high-density character printing and
also high-resolution printing by bit-image signal
will be performed. Wave-like recording and bit-image
recording work on input of digital-data,
so interface of 8-bit parallel can be used.
Thermal printing method will not make noise and
will be free from maintenance. DR-series thermal
printer units are ideal for the output terminal
machine of all the measuring and testing
apparatus.
CHARACTERISTIC
① Thin-film thermal head will make high-density
character printing by high-resolution of 8dot/mm.
② On printing of analog wave signal, very
smooth curve drawing is performed. And at the
same time,
ANK characters will be printed.
③ Graphic images will be also printed by bit-image
signal.
④ Compact and light-weighted naked type can be
built in the various apparatus.
⑤ The recording roll paper of about 25~30
meters will enable long time printing.
|
| |
|
 |
